4 Bare Metal Recovery 1-Touch for Linux Cloud Servers

Download the Baremetal Linux ISO .iso file from the Download Center section of Commvault Command Center;
upload the .iso file to the virtual disk of your Cloud Server;
connect to the Cloud Server using the recovery console;
restart the Cloud Server, making sure it boots from the virtual disk;

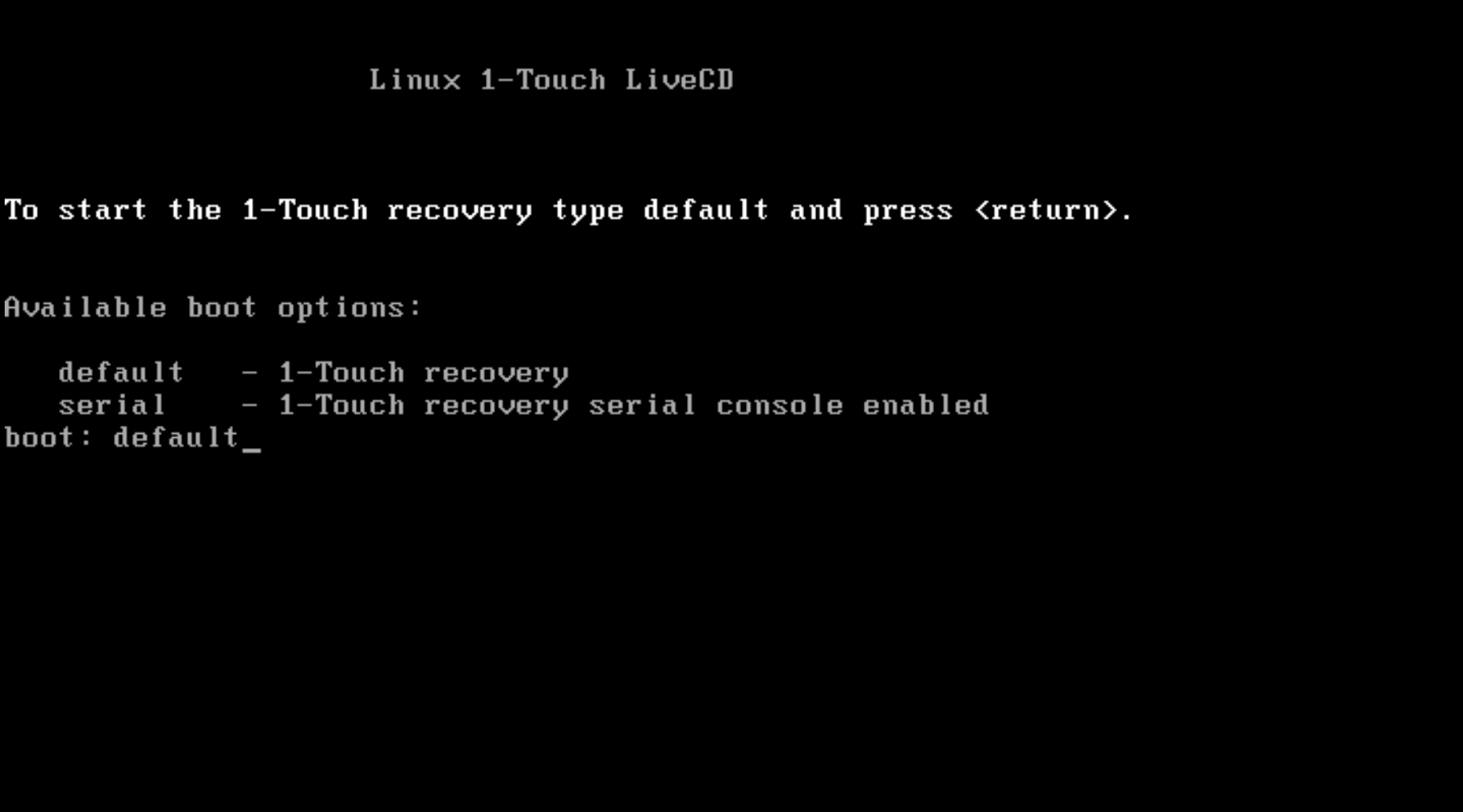

select default as the boot option;

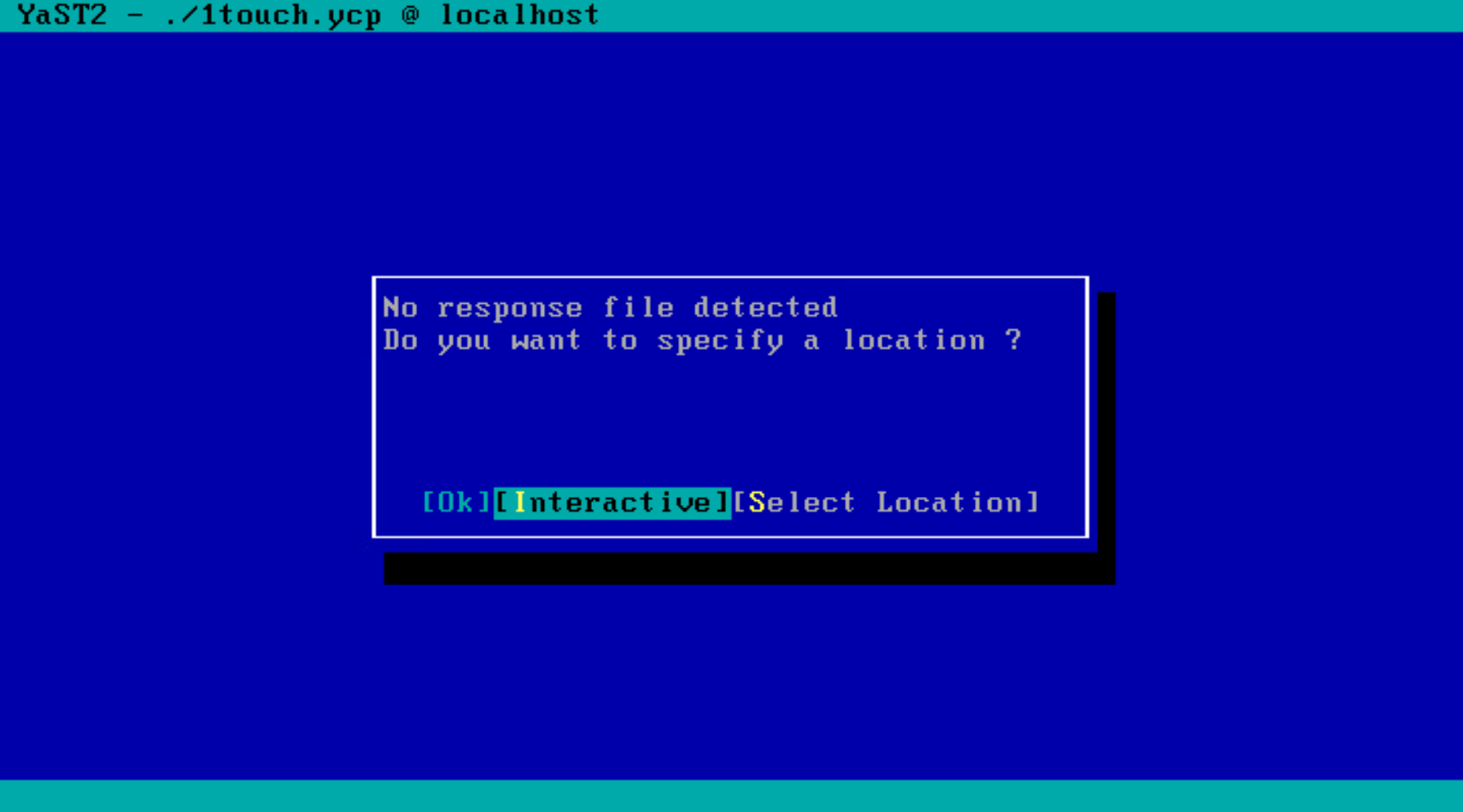

when prompted with Do you want to specify a location?, select Interactive;
select the appropriate network interface (the default is eth0):
- if restoring to the same machine, enter the source machine's IP address;
- if restoring to a different machine, enter the destination machine's IP address;

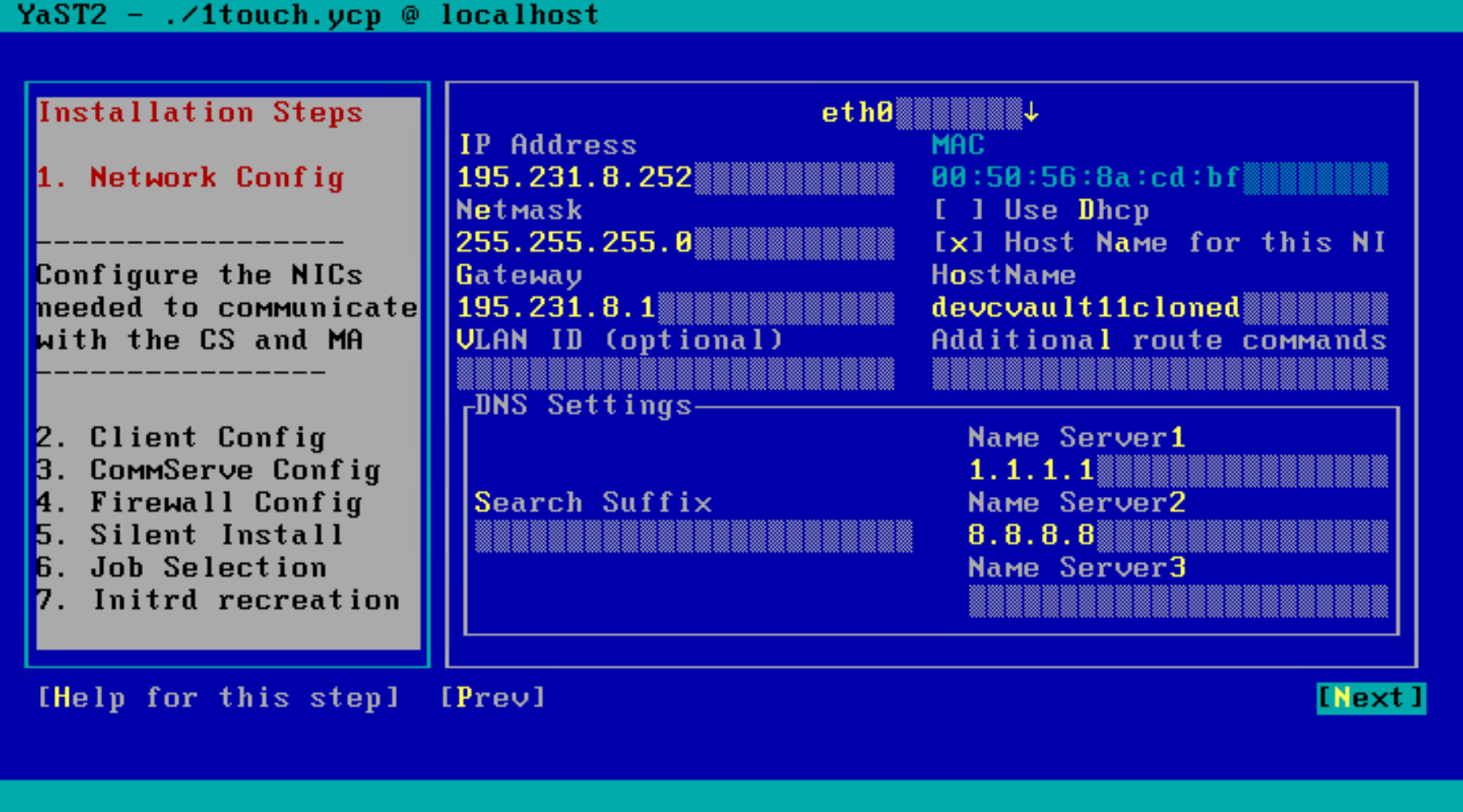

select Host Name for this NIC and enter the hostname;

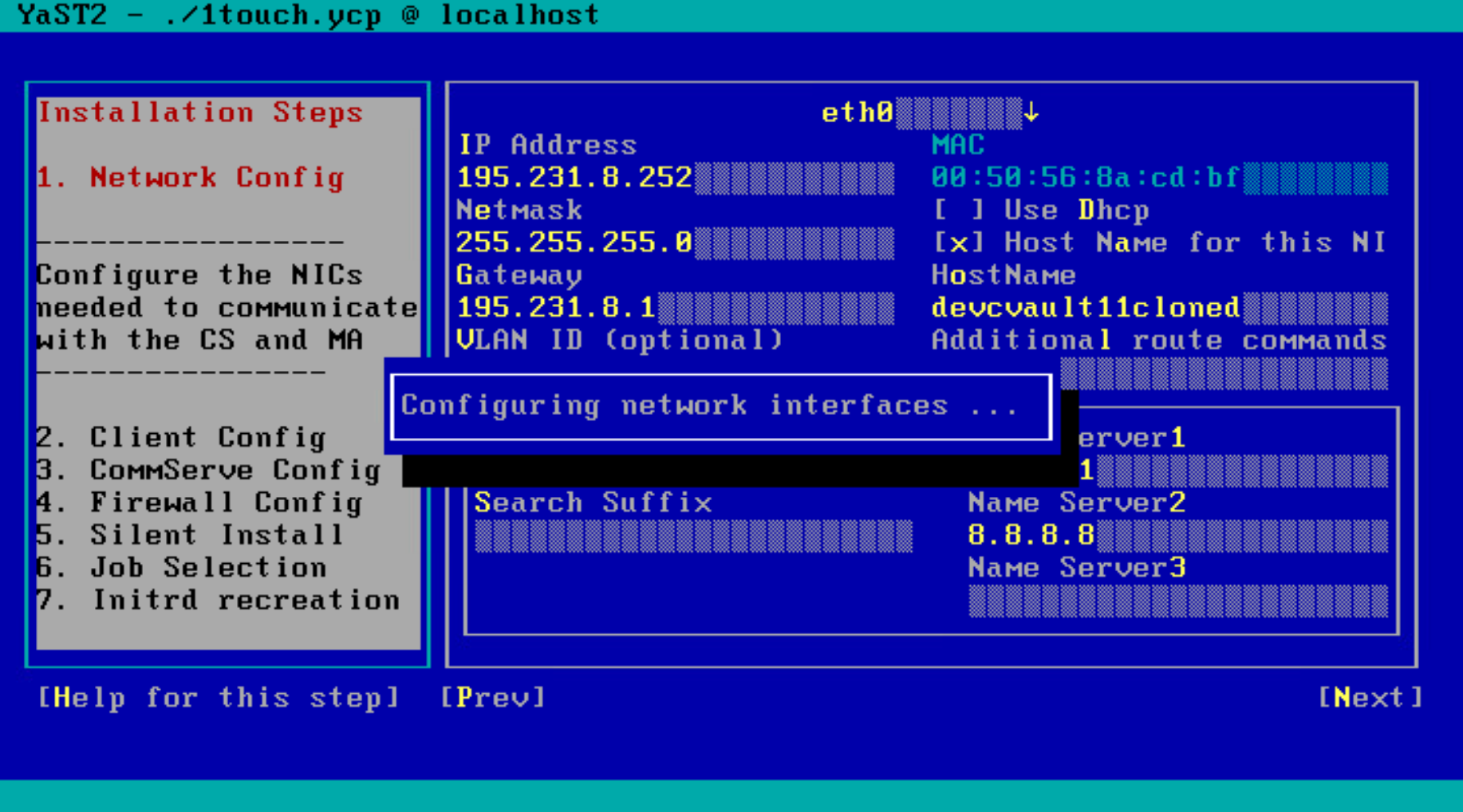

ONLY WHEN CLONING
Enter a new hostname for the cloned machine (the hostname must be different from the source machine's hostname).

confirm by selecting Next;

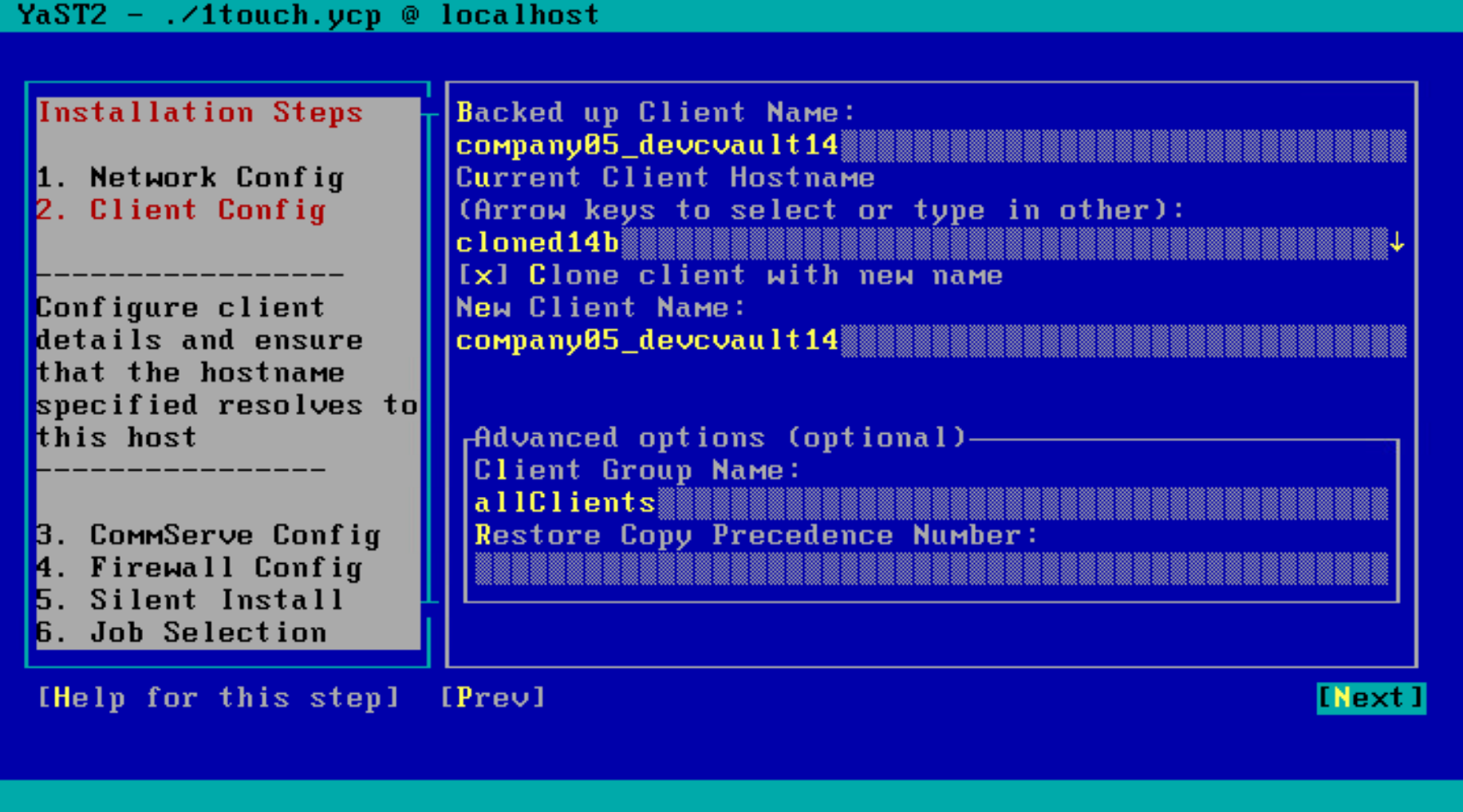

Backed up Client Name: enter the client name as it appears in Commvault Command Center (using the company_hostname format);
Current Client Hostname: select the hostname entered in the previous form;

ONLY WHEN CLONING
Select Clone client with new name and enter the new client name in New Client Name (using the company_newclientname format).
Client Group Name: enter allClients;

confirm by selecting Next;

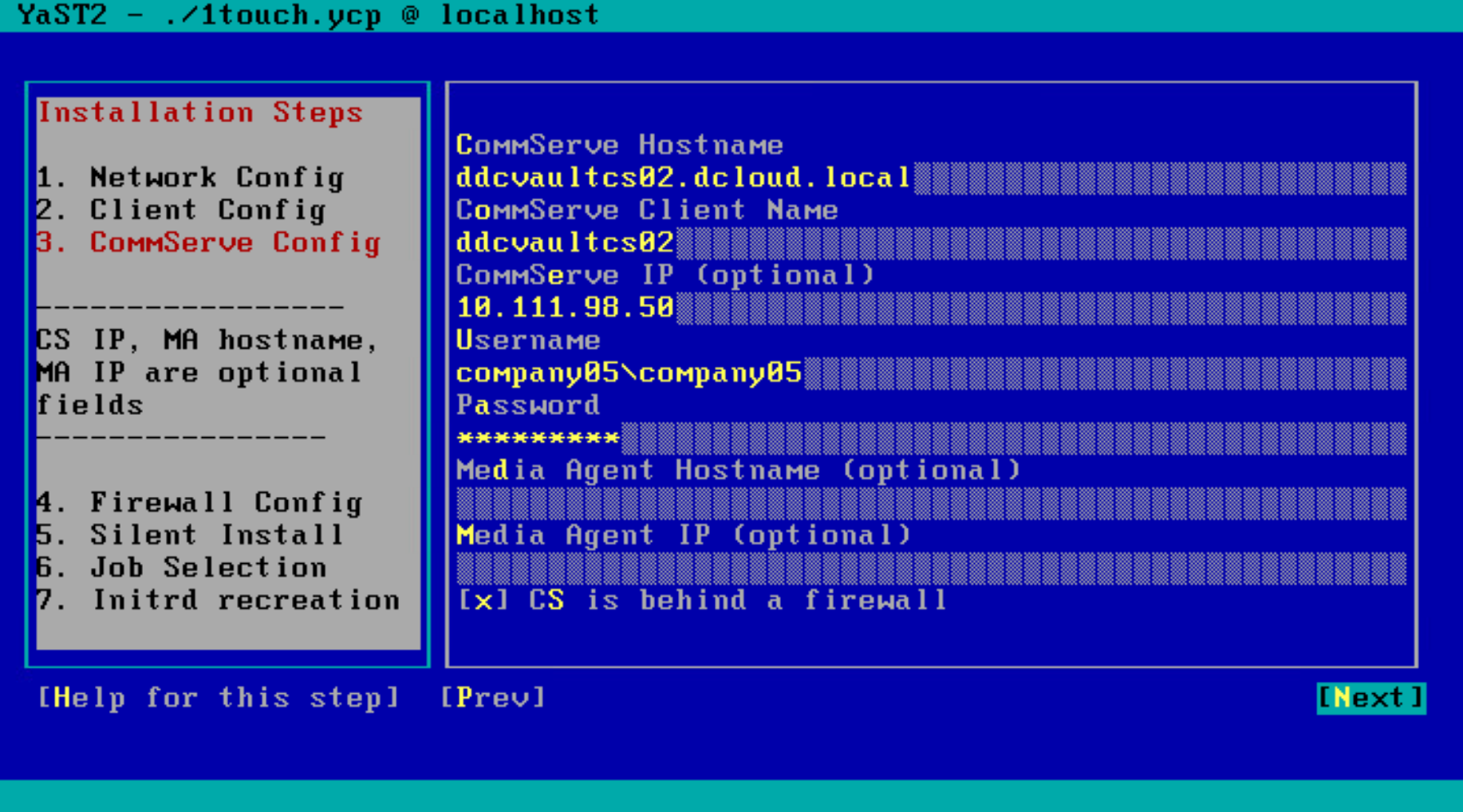

CommServe Config:
- retrieve the values from the Cloud Control Panel and enter them in the following fields:
  - CommServe Host Name: the full CommServe hostname (for example, Ddcvaultcs02.dcloud.local);
  - CommServe Client Name: for example, Ddcvaultcs02;
  - CommServe IP address: for example, 10.111.98.50;
- enter your credentials, making sure you are a tenant administrator (for example, Azienda05\azienda05):
  - User Name;
  - Password;
- select CS is behind a firewall;

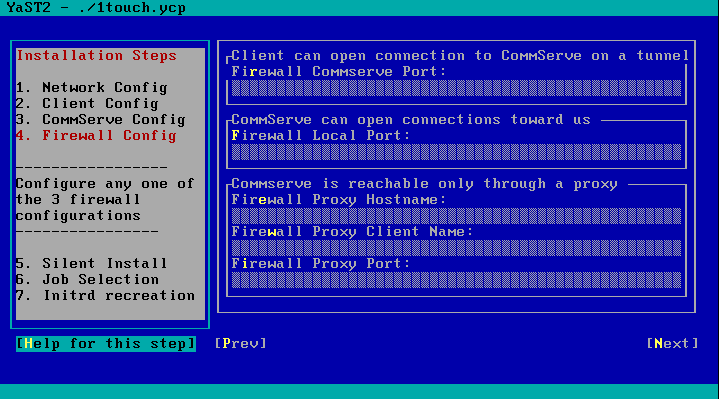

complete the fields in the Commserve is reachable only through a proxy section:
- retrieve the values from the Cloud Control Panel and enter them in the following fields:
  - Firewall Proxy Hostname: enter the IP address (for example, 95.110.152.235);
  - Firewall Proxy Client Name: enter the proxy name (for example, Backupdev1a.cloud.it);
  - Firewall Proxy Port: 8403;
confirm by selecting Next;

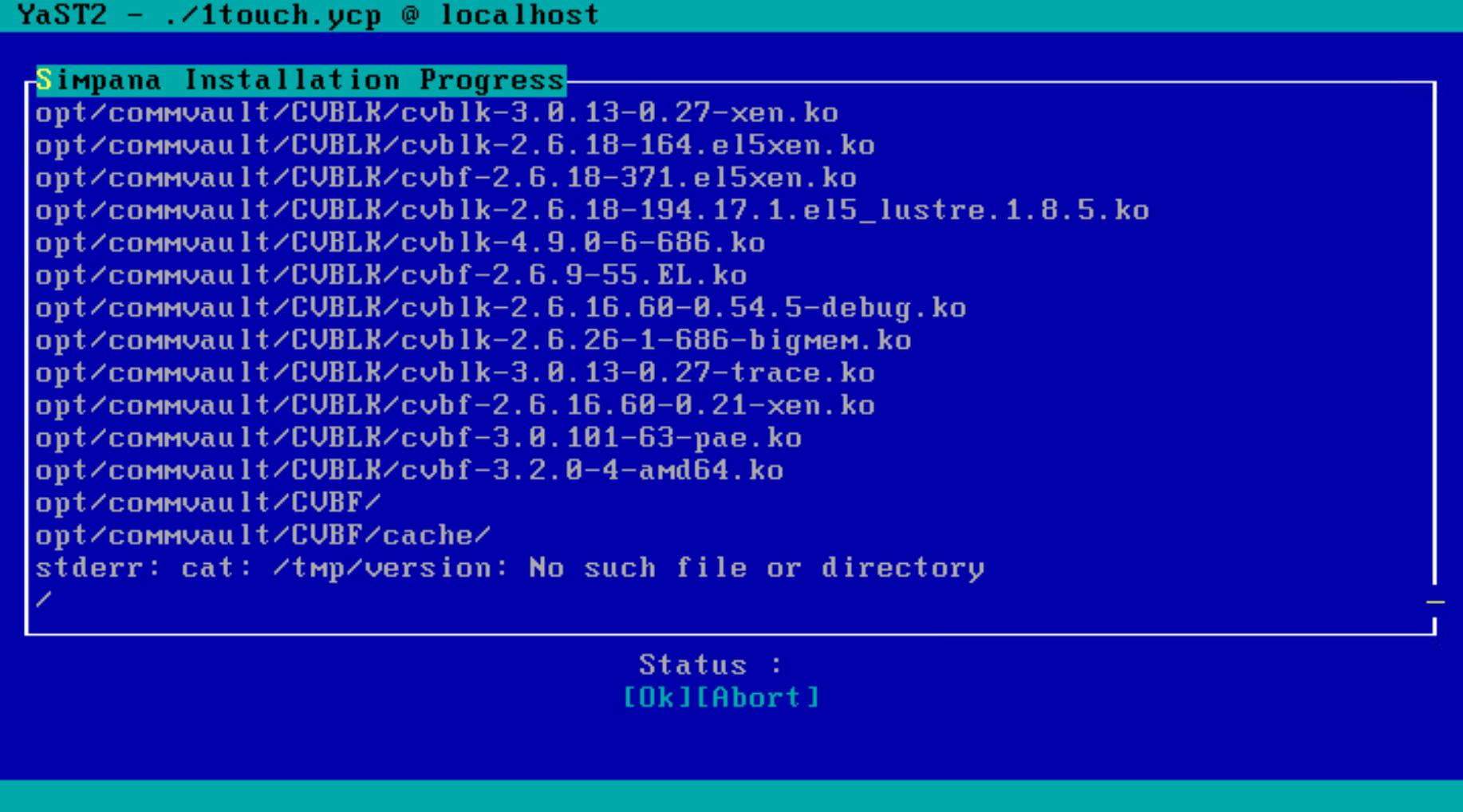

the agent installation starts in RAM;

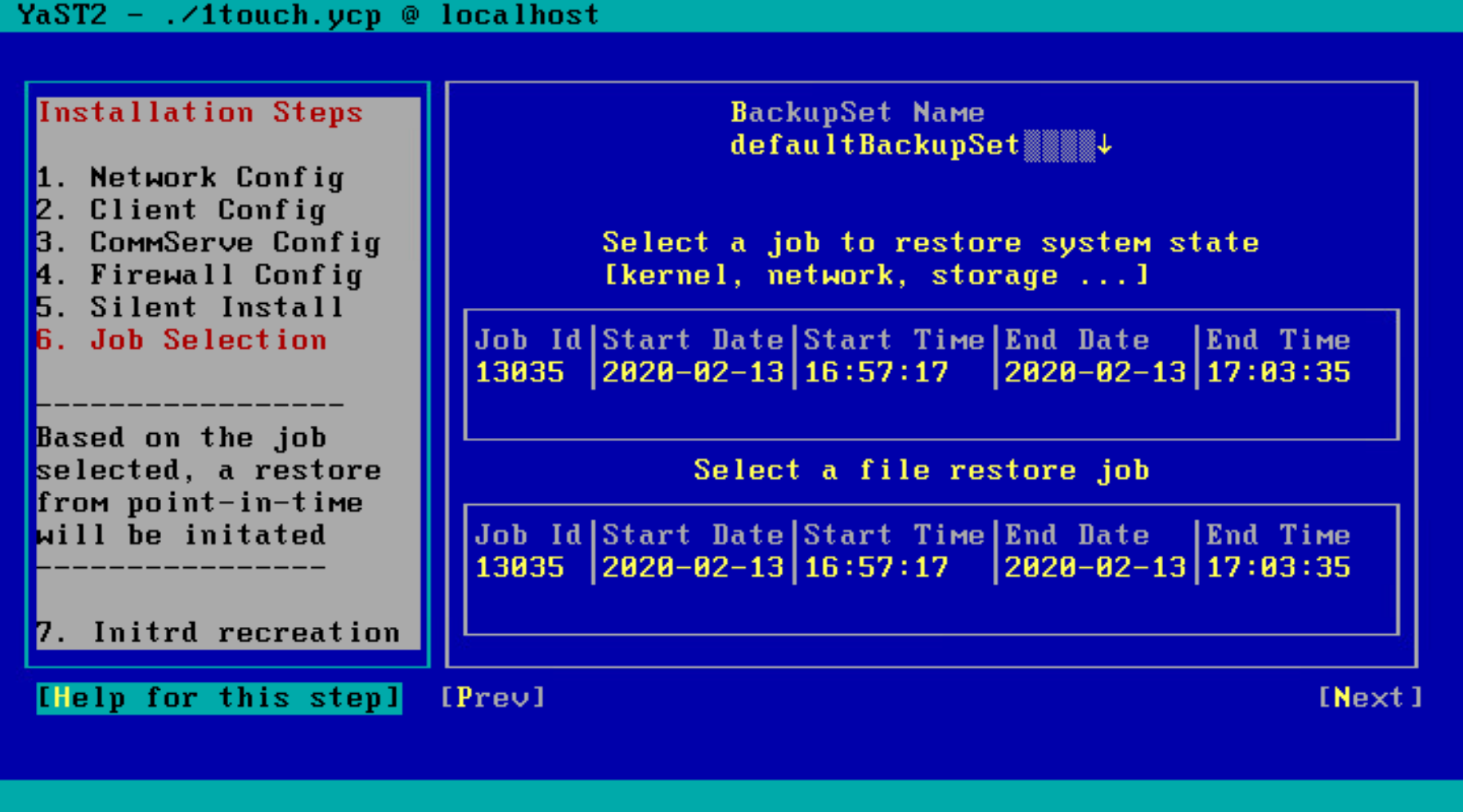

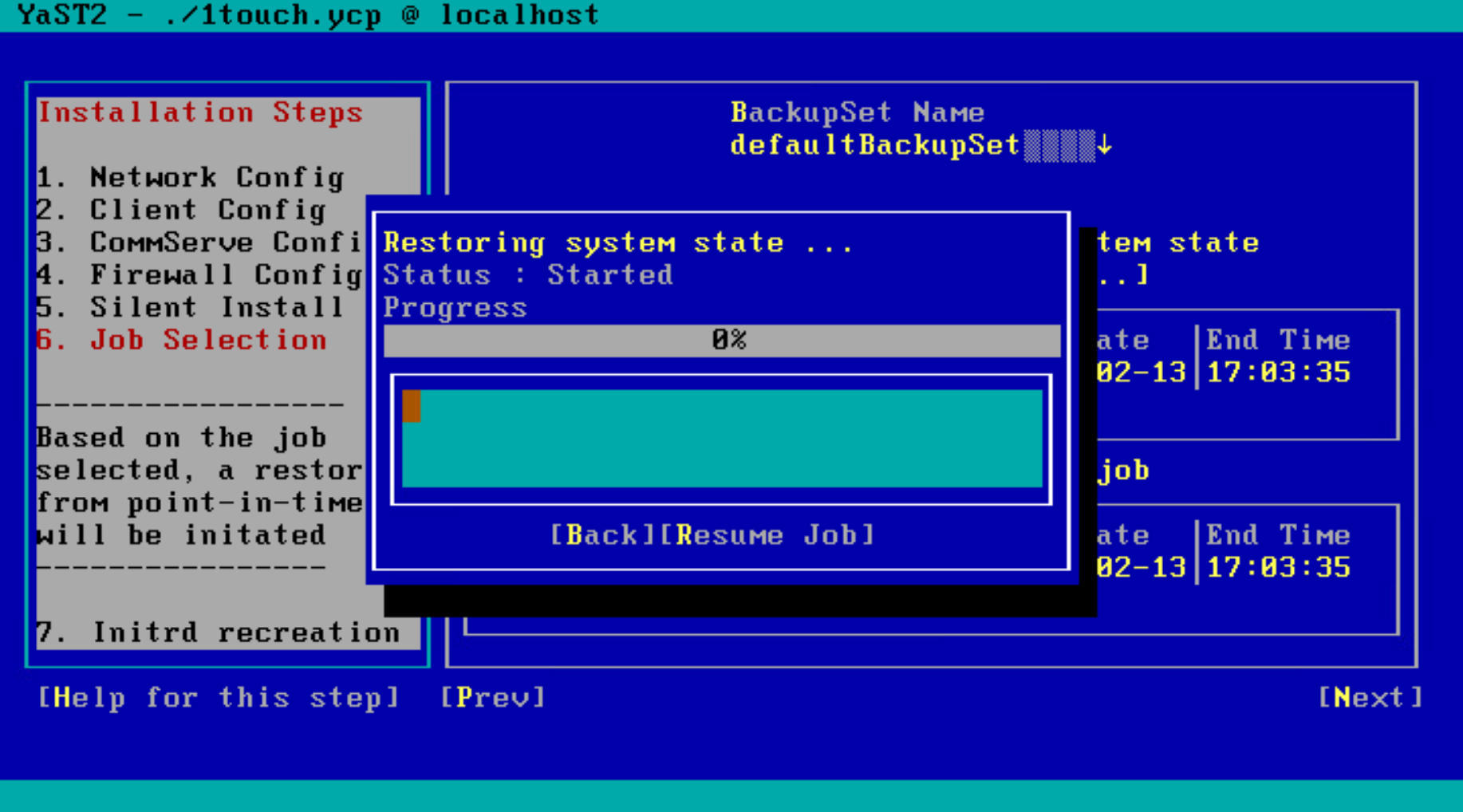

select a BackupSet and a job to restore;

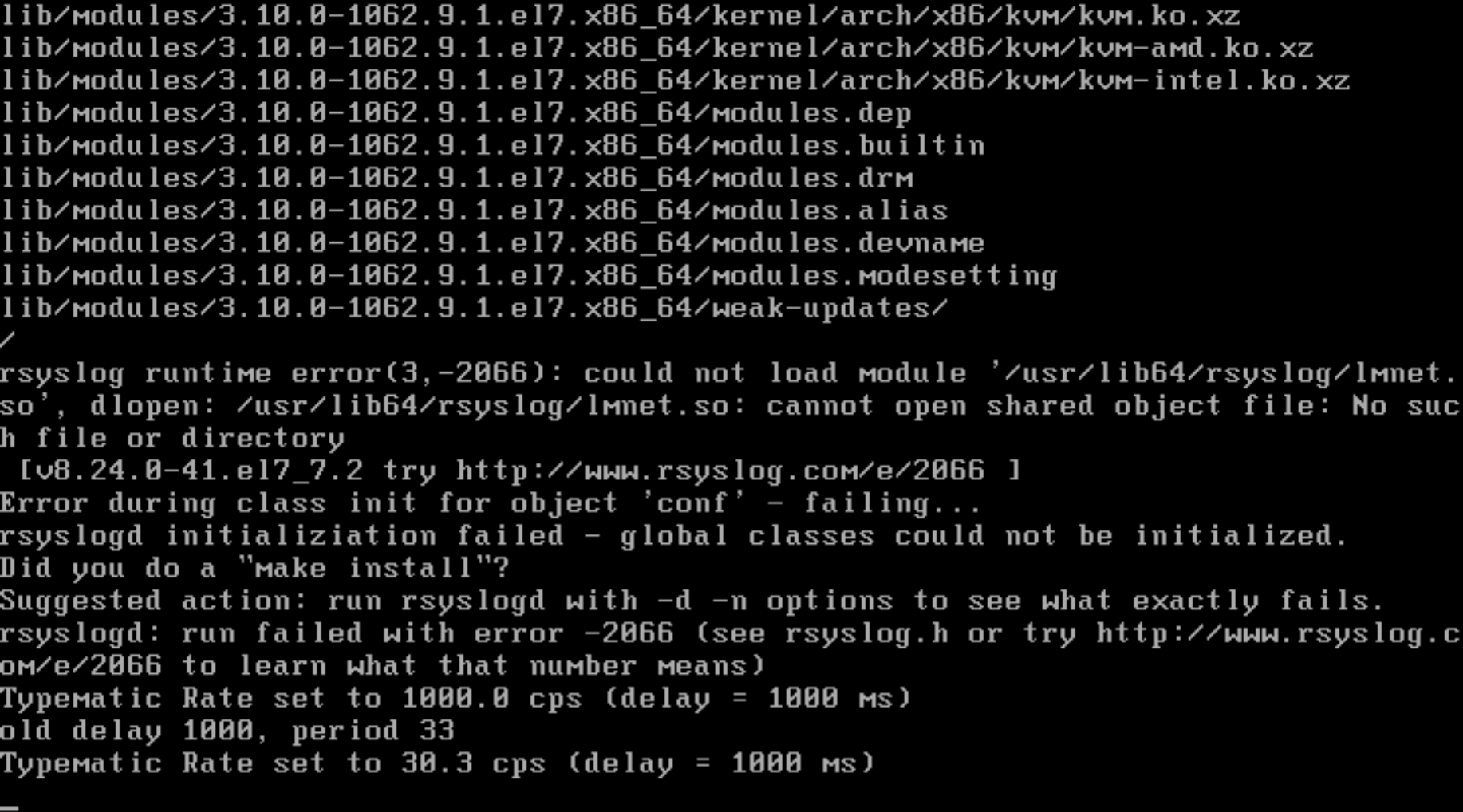

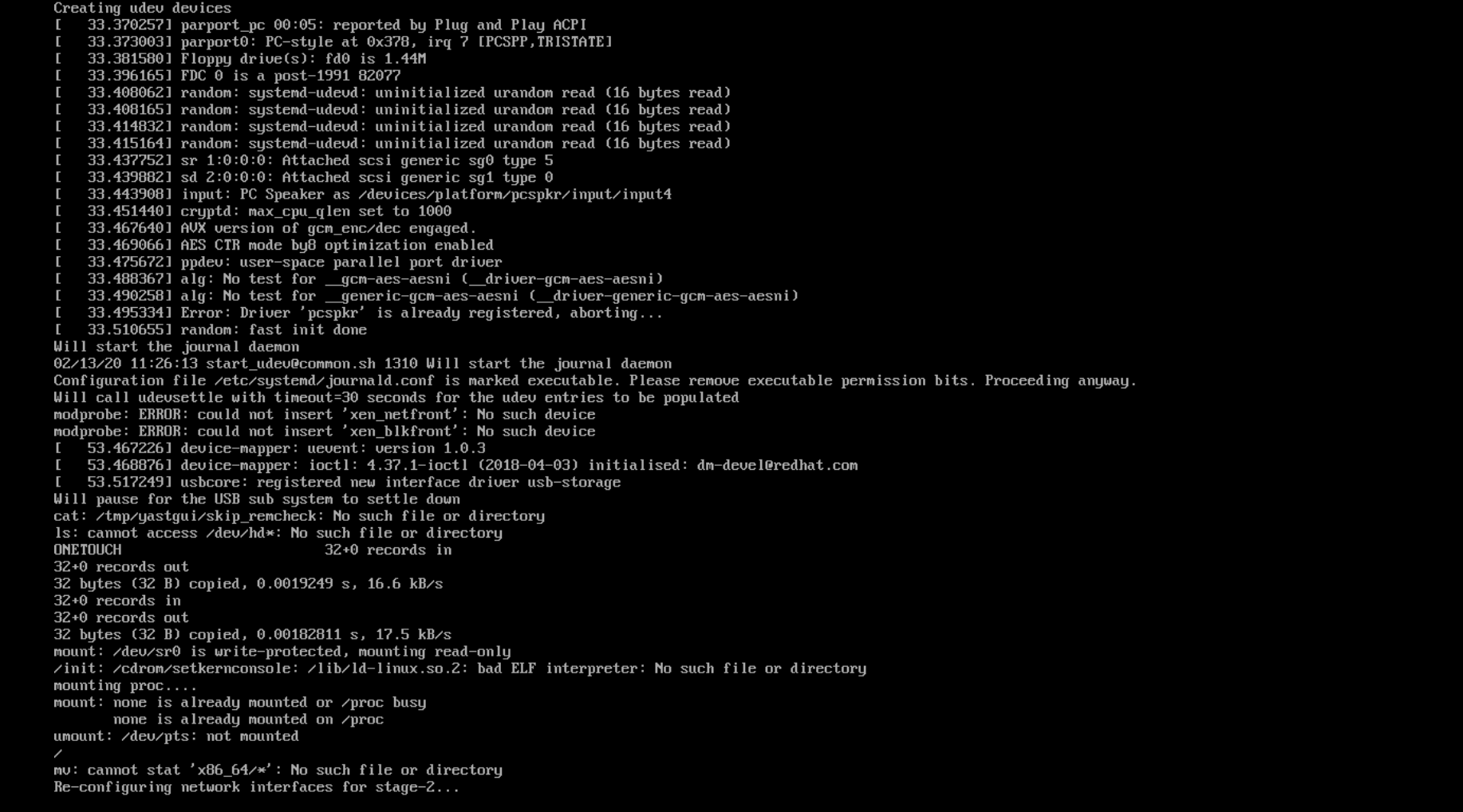

system state restoration starts;

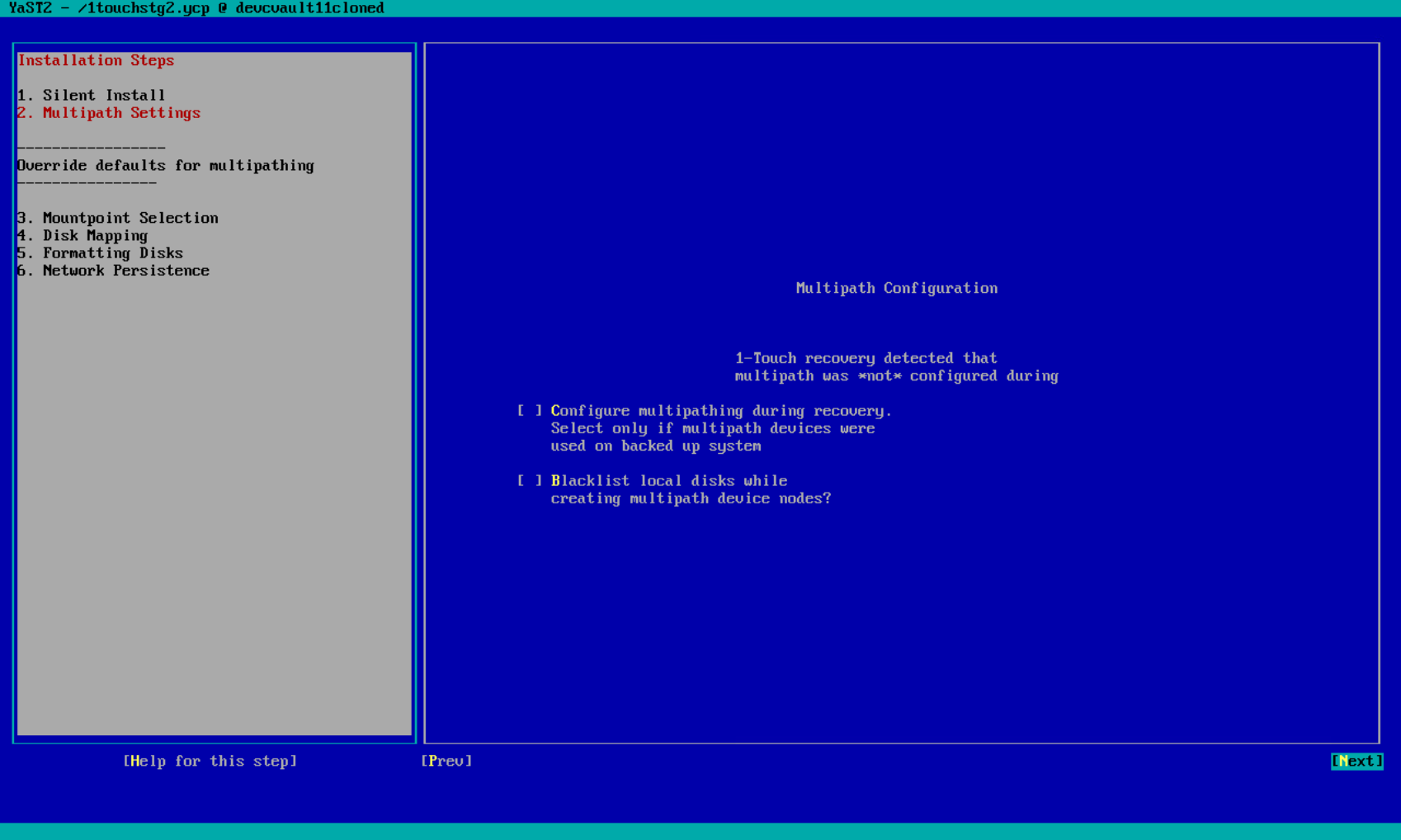

Multipath Configuration: leave all options unchanged and select Next;

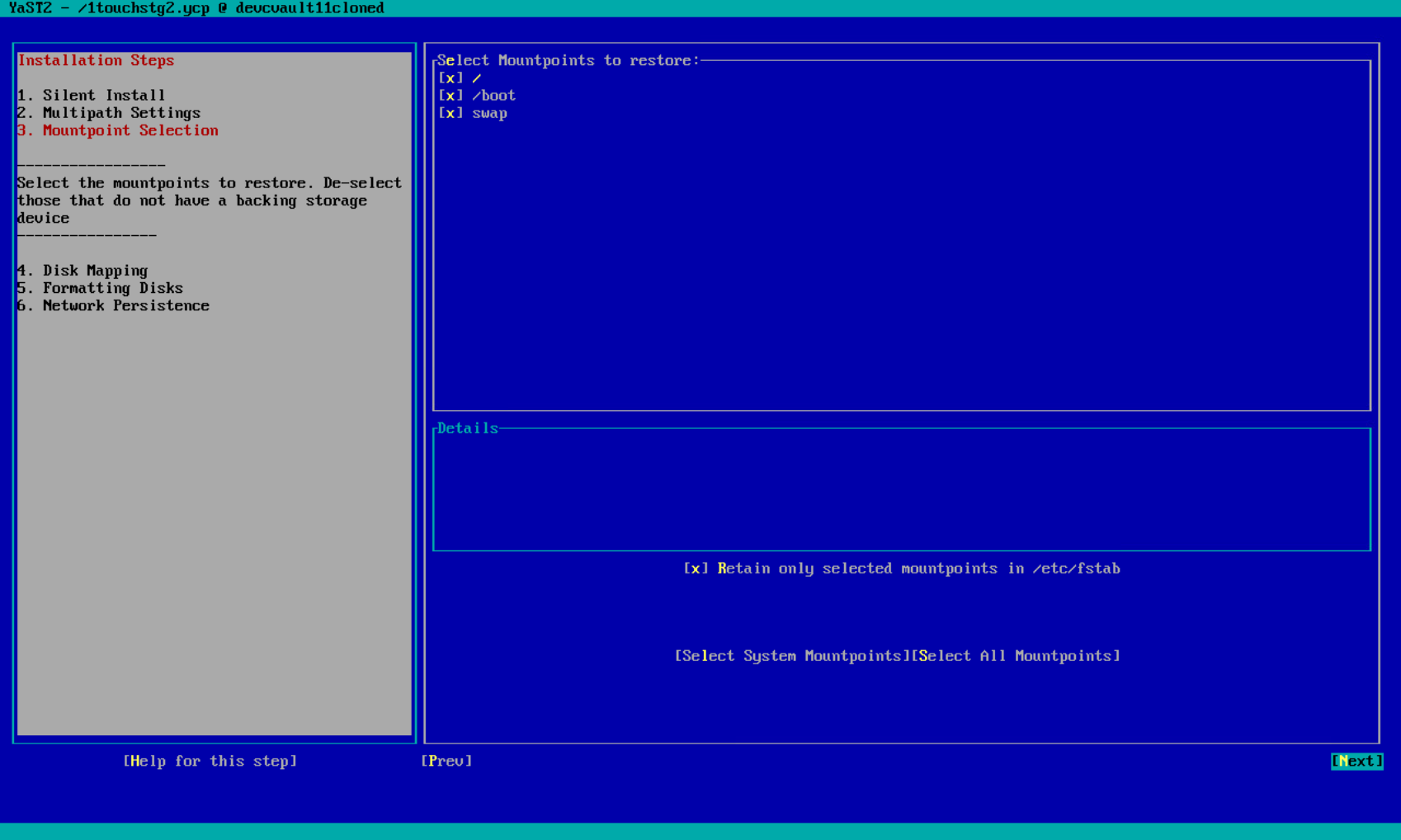

Mountpoint Selection: leave all options unchanged and select Next;

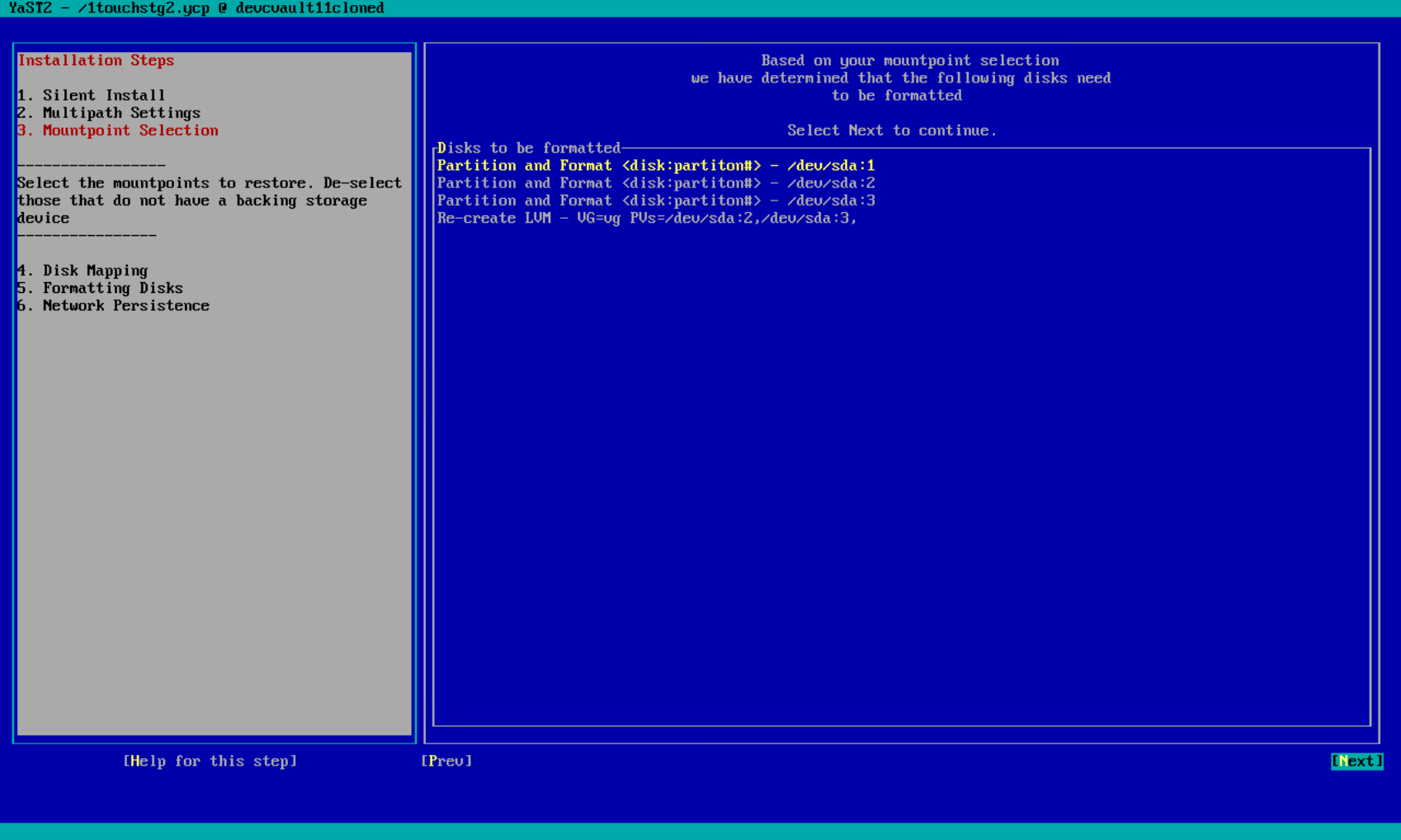

on the next page, leave the options unchanged and select Next;

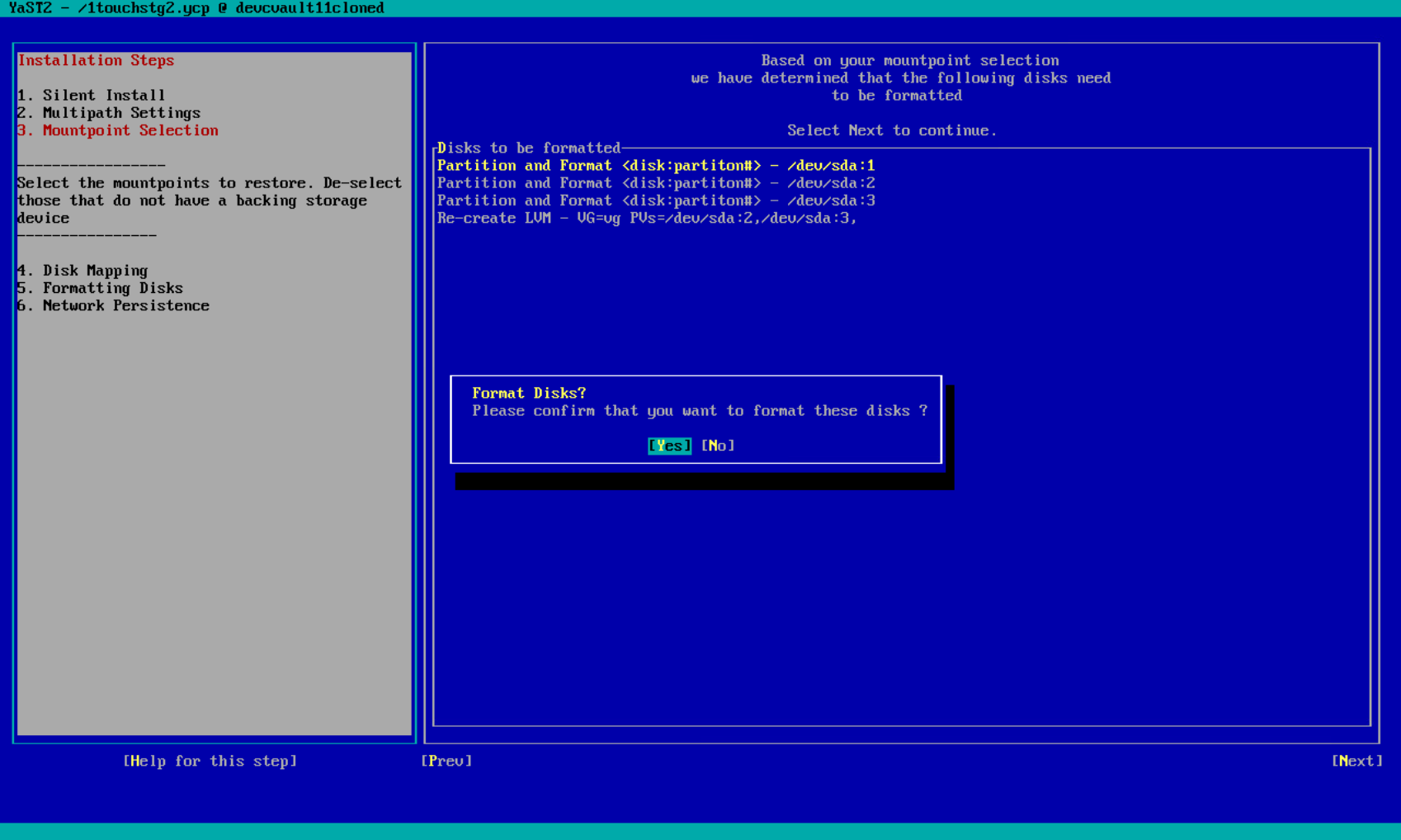

when prompted with Format Disks?, select Yes to confirm;

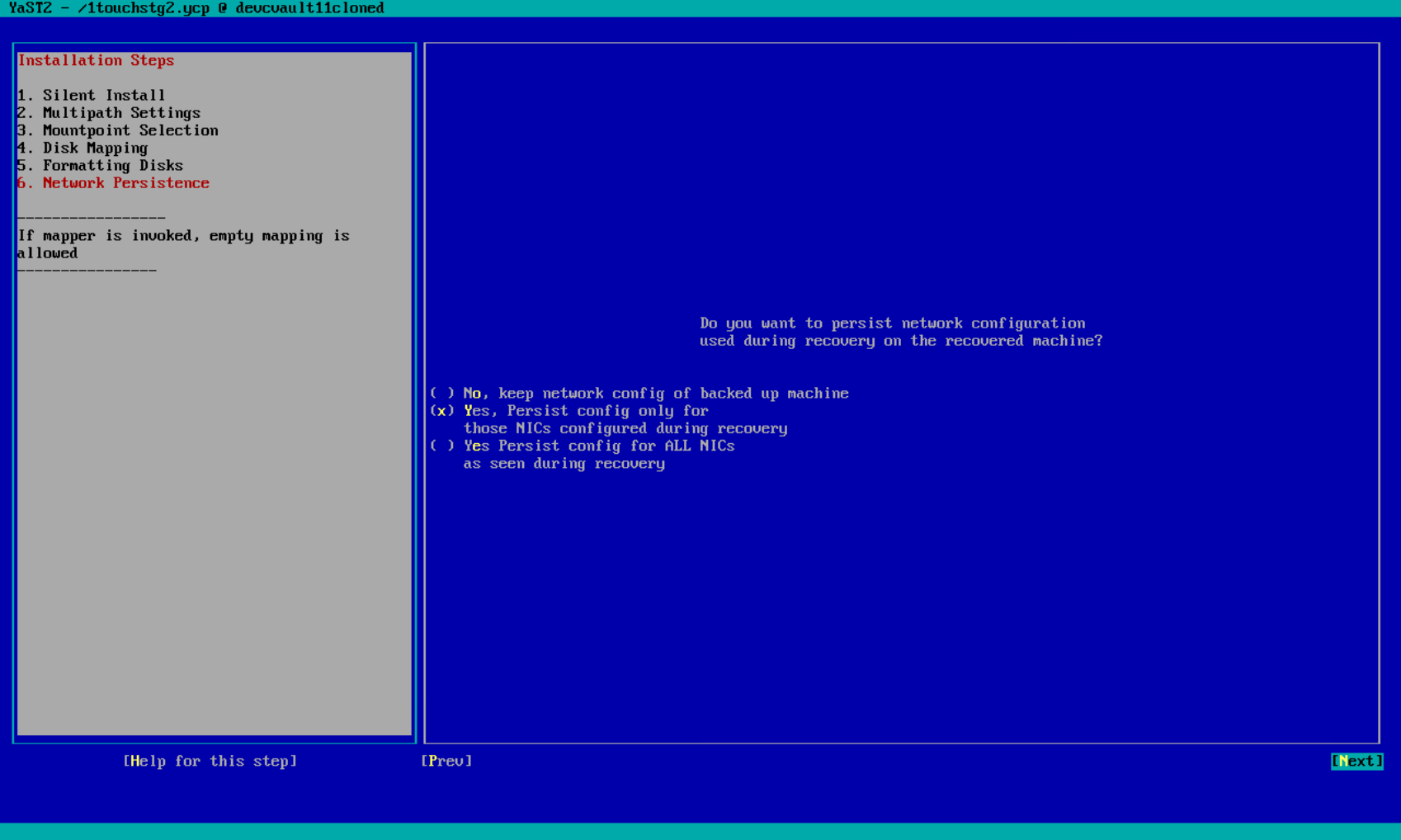

on the Network Persistence page, select Yes, Persist config only for those NICs configured during recovery;
the restore starts;

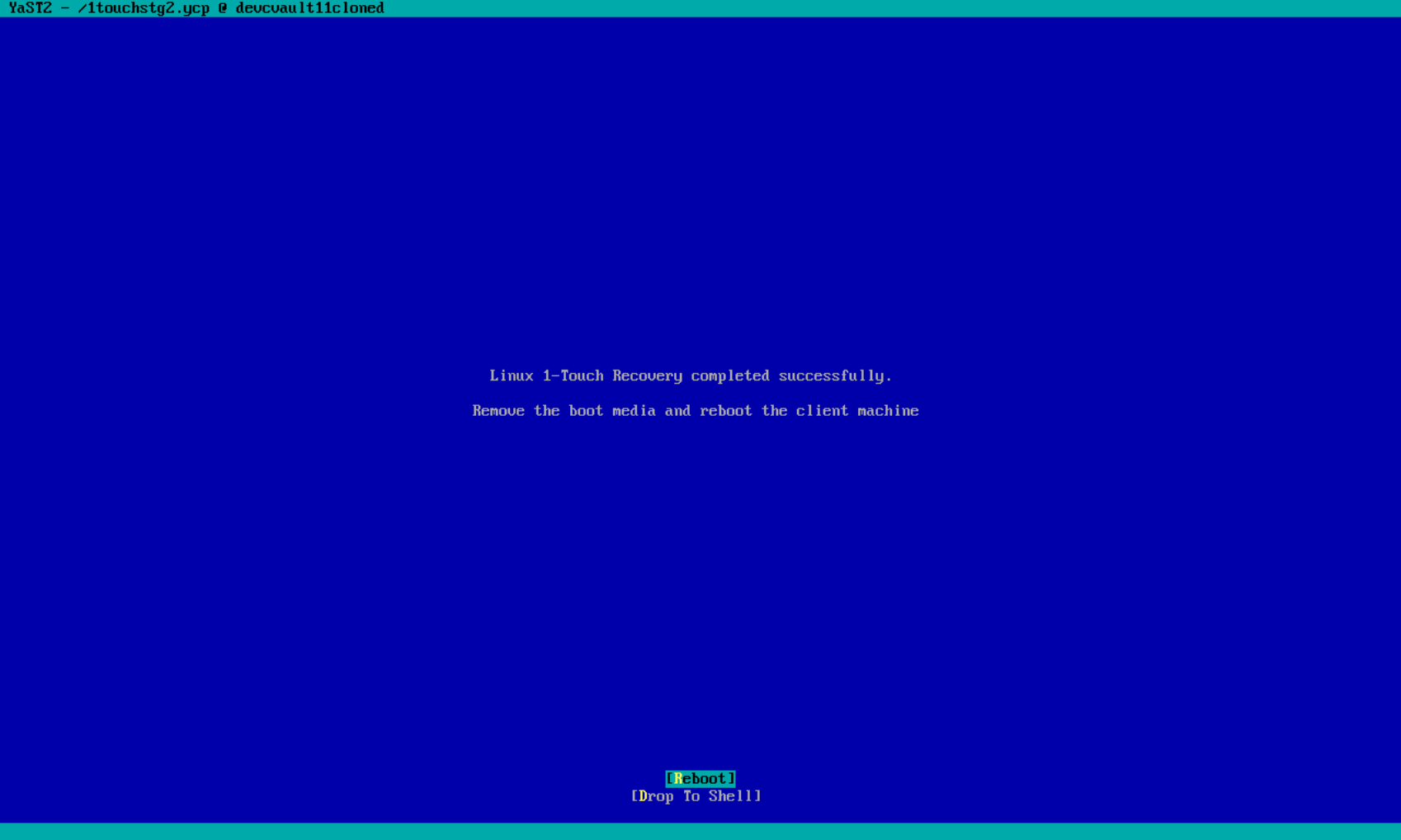

when the restore is complete, the message Linux 1-Touch Recovery completed successfully; is displayed;
restart the Cloud Server.
